Plastic flowmeter
Product Model:LZB-()S series

Summary:
LZB-()S plastic tube flowmeter is featured with light weight, corrosion resistant, unbreakable,innoxious, tasteless and convenient.It is widely used in chemical industry,light industry,pharmacy,food,environment protection etc.

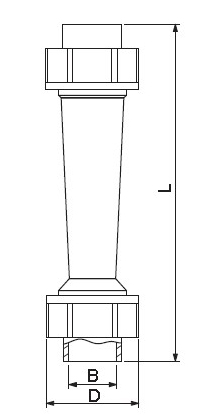

Outline and Installation Size:
Table 1


Parts

Materials

Bolts

ABS

Stop

Float

Connection

Taper tube

AS

Seals

NR













Technical Parameter
Table 2


Short tube type

DN(mm)

Model

Measuring range

Size(mm)

Socket end size(mm)

Welding pipe size(mm)

Accuracy

Pressure(MPa)

Temperature(℃)

L

B

D

15

LZB-15S

6~60L/h

200

20

45

15

20

4

≤0.6

0~40
Medium is water,weak acid,weak base

10~100L/h

25

LZB-25S

0.1~1m3/h

226

32

60

25

32

0.16~1.6m3/h

0.25~2.5m3/h

0.3~3m3/h

32

LZB-32S

0.4~4m3/h

288

40

74

32

40

0.6~6m3/h

50

LZB-50S

1~10m3/h

341

63

98

50

63

1.6~16m3/h

65

LZB-65S

5~25m3/h

430

75

122

65

75

8~40m3/h

12~60m3/h

                                       Table 3


Long tube type

DN(mm)

Model

Measuring range

Size(mm)

Socket end size(mm)

Welding pipe size(mm)

Accuracy

Pressure(MPa)

Temperature(℃)

L

B

D

15

LZB-15SL

10~100L/h

280

20

45

15

20

4

≤0.6

0~40
Medium is water,weak acid,weak base

16~160L/h

25~250L/h

40~400L/h

60~600L/h

25

LZB-25SL

100~1000L/h

380

32

68

25

32

160~1600L/h

250~2500L/h

300~3000L/h

50

LZB-50SL

0.4~4m3/h

435

63

98

50

63

0.6~6m3/h

1~10m3/h

1.6~16m3/h
