Metal tube flowmeter

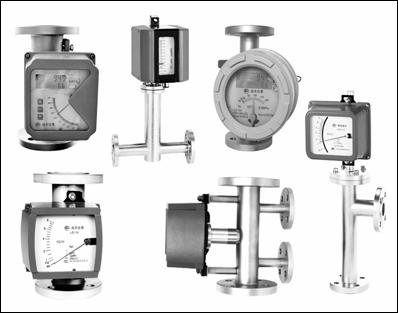

Product Model:Metal tube flowmeter

[Summary]
The standard LZ series metal pipe float flowmeters are composed of one measuring tube and on side indicator.The site indicator can be installed also with additional electric devices, suitable for liquid and gas measurement.
The flowmeter adopts to variable area measuring principle. The measuring device is composed of one taper measuring tube and floater. The floater can move freely up and down in the taper measuring pipe to change the flow area in the pipe.When the flow changes, the vertical position of the floater inside the measuring pipe changes correspondingly.Through magnetic transmitting system, the position of the floater is transmitted to the dial scale of the indicator to indicate the flow.
In M6、M8、 M9 indicator, the follow-up magnet movement is transmitted directly
to the dial scale.In M7 indicator, when the follow-up magnet rotates, the needle
driven by the cam plate indicates linearly the flow.
[Features]

  1. All metal construction, suitable use for high temperature,high pressure and strong corrosive medium.
  2. Short stroke、compact structure.
  3. Low pressure loss design.
  4. New style magnetic coupling structure ensures that the signal transmission is more stable.
  5. Magnetic filter can be added as customer requirement.
  6. Thermal insulation or tracing heat jacket.
  7. Used in the gas and liquid measurement in all industries. The measurment parts can adopt different  materials to be  suitable  for  different medium.
  8. Intelligent dual-line LCD display,on-site instant/cumulative flow display and back light as options.
  9. Two-wire system,lithium battery,DC24V power supply.
  10. With data recovery、data backup and power fail protection functions.

  [Type Selection]


Table 3

LZ-

Z

On-site indicate





D

Electric transmission





DN

15、25、50、80、100

Diameter





RR1

Stainless steel 1Cr18Ni9Ti

Measuring tube material

RR0

Stainless steel 0Cr18Ni12Mo2Ti

RL

Stainless steel 00Cr17Ni12Mo2

F

PVDF or F46 fluoroplastics lining



M6

Pointer nonlinear indicate instant flow,LCD display instant,integrated flow

Indicator type

M7

Pointer linear indicate instant flow

M8

Multifunction indicator,explosion-proof type

M9

Pointer nonlinear indicate instant flow

M9B

Stainless steel body pointer nonlinear indicate instant flow



A1

Battery operated no signal output,no backlight,no alarm(only for M6,M8)

A2

24VDC two-wire power supply,4~20mA output(both for HART),with backlight(M9)(only for E3)



E1

5W1 angular displacement transmission (4~20)mA 24V DC two-wire (linear)

Remote transmitter

E2

ESK transmission with HART LCD backlight (4~20)mA 24V DC two-wire(nonlinear)



Exi

Intrinsic safety type

Explosion proof type

Exd

Explosion-proof (only for M8 indicator)



No

No alarm

Switch alarm output

K1

With a upper switch alarm point

K2

With a floor switch alarm point

K3

With two-switch alarm point



B1

Vertical installation

Structure
Note:showflow and header direction in order

B2

Horizontal installation

B3

Side inlet side outlet

B4

Side inlet side outlet

B5

Bottom inlet side outlet



T

Clamp type

Accessary

H

High temp.(special for LZD)



-40℃~+400℃

Medium temperature



≤6.4MPa

Working pressure





g/cm³

Medium density







Q

Gas

Medium type







Y

Liquid

LZ-
