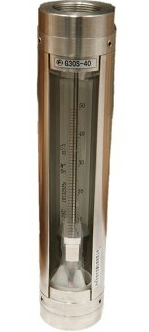

Product Model:LZB-G30S() series



Summary
LZB-G30 series glass tube flow meters are the new design products in our company,with stainless steel body and screw connection.Featured with high quality,nice figure,easy installation,safety and reliable.Can be widely used for chemical,pharmacy,paper making and metering,scientific research.

Technical Parameter


DN (mm)

Measuring range

Pressure (MPa)

Temperature (℃)

Accuracy

Water(L/h)

Air(m3/h)

15

10~100
16~160
25~250
40~400
63~630

0.12~1.2
0.2~2
0.3~3
0.5~5
0.8~8
1.2~12
2~20

≤1.0

-20~+120

2.5

25

63~630
100~1000
160~1600
250~2500

2~20
3~30
5~50
6~60

40

160~1600
250~2500
400~4000

5~50
8~80
12~120

≤0.9

50

400~4000
630~6300
1000~10000

12~120
20~200
30~300

≤0.7

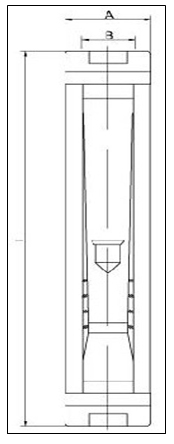

Outline and installation dimension


DN(mm)

A

B

L

DN15

Φ45

G1/2"

344

DN25

Φ62

G1"

348

DN40

Φ80

G1½"

370

DN50

Φ99

G2"

380
